Climbing concrete distributor| JIUHE 32m| sale for construction| china manufacturer

Climbing concrete distributor| JIUHE 32m| sale for construction| china manufacturer

Climbing concrete distributor| JIUHE 32m| sale for construction| china manufacturer
Climbing concrete distributor| JIUHE 32m| sale for construction| china manufacturerClimbing concrete distributor| JIUHE 32m| sale for construction| china manufacturerClimbing concrete distributor| JIUHE 32m| sale for construction| china manufacturer
CategoriesConcrete Placing Boom
BrandJH, Heavy Industry Machinery
Model32m
Max concrete placing radius32m
typefloor climbing type
power15kw
Total Weight19.8ton
Boom Section3
control wayPanel/ Wireless remote control
counter weightequipped
Rotary range360 degree
Rotating speed0.3-0.8m/s
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory JIUHE Brand 32M Floor Self Climbing Type Climbing concrete distributor
JIUHE Series floor climbing type concrete placing boom can be anchored to the floor with Initially prepared holes when working, and it can be lifted itself by its equipped climbing system, one lifting can meet the need of two floors concrete placement.If the floor area is large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost.Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or lift shaft.
Features

Good partner for concrete pump
concrete placing boom as one good partner for concrete pump, whatever pump kind, once connect the pipe, then concrete placing boom can easily to placing concrete in certain floor, save much time compared with arrange pump pipe again.

Reliable Performance
Simple structure, hydraulic, boom, remote control, all ensure the machine can be used in safe and reliable.

High efficiency
Concrete placing boom put on certain floor, the max. concrete placing radius vary from 15m to 52m, which can easily take care each corner that need concrete pouring, with high concrete placing efficiency, save working time, reduce worker working strength, improve whole concrete pumping and placing efficiency, save much cost on construction.

Video
China Professional Manufacturer JIUHE Brand Profile
JIUHE is professional manufacturer in China for concrete placing boom vary from 15m to 52m, we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Model

HG32

Delivery pipe dimension

(outside diameter×thickness) (mm×mm)

φ133×4.5

Delivery hose dimension (inside diameter×length)  (mm ×mm)

φ125×3000

Radius of placing boom(m)

31.7

Stationary height(to the join between the end of the boom and swivel table(m)

22.7

tower body mast sectionmm

750x750

Slewing range(°)

360

Power of motor(kw)

15

Pressure of hydraulic system (MPa)

31

Type of hydraulic oil

AW68

The min.Interval of climbing

Frame (m)

Climbing

3.0

Placing concrete

6.0

Resting

Mode of operation

1cable remote control

2radio remote control

power

380V/50Hz

wind speed

Placing concrete

≤60 kmh

Climbing

≤28 kmh

working temperature

060

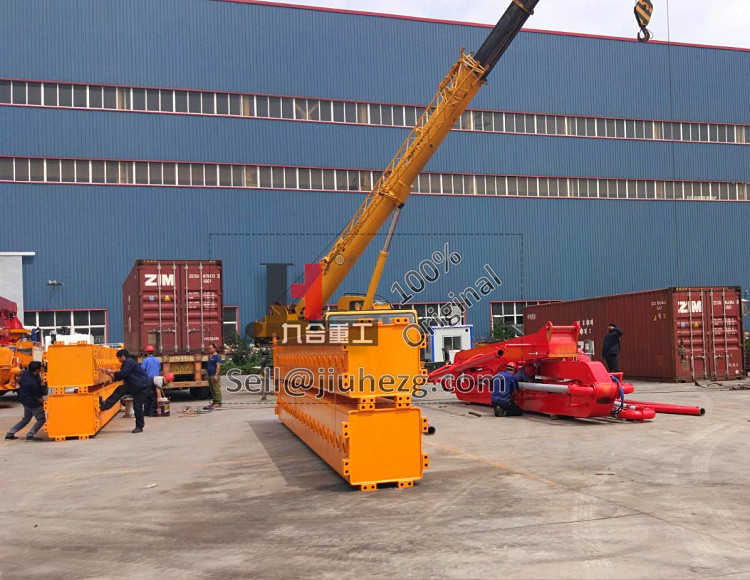

Machine Photo
