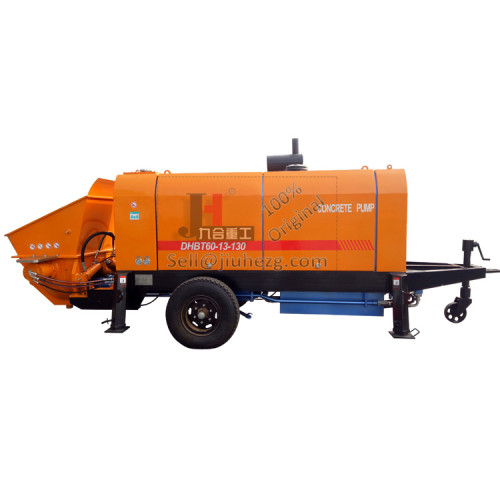

Diesel concrete pump | JH DHBT60| sale for construction | china factory

Diesel concrete pump | JH DHBT60| sale for construction | china factory

Diesel concrete pump | JH DHBT60| sale for construction | china factory
Diesel concrete pump | JH DHBT60| sale for construction | china factoryDiesel concrete pump | JH DHBT60| sale for construction | china factoryDiesel concrete pump | JH DHBT60| sale for construction | china factoryDiesel concrete pump | JH DHBT60| sale for construction | china factory
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelDHBT60
Concrete pumping capactiy60m3/h
concrete pumping height180m
concrete pumping distance500m
System Working Pressure32MPa
Concrete Cylinder200
Max. aggregate dimension40mm
power system130kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand DHBT60 diesel concrete pump For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Trailer Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Item

Units

Technical data

Whole Machine Performance

theoretical delivery volume

m³/h

60

theoretical delivery pressure

Mpa

12.5

Max. delivery frequency

Times/min

22

theoretical delivery height

m

180

theoretical delivery distance

m

500

Type of distribution valve



S Tube Valve

Specification of delivery cylinder

mm

Φ200×1650

Specification of main oil cylinder

mm

Φ125/Φ80×1650

Oil tank capacity

L

500

Hopper capacity

L

600

Feeding height

mm

1400

Outlet diameters

mm

Φ180

Delivery pipe inner diameter

mm

Φ125

Power system

Diesel Power

Kw

130

Rated rotate speed

r/min

2300

Idling speed

r/min

800

Voltage of battery cell

V

24V

fuel tank capacity

L

150

Hydraulic system

Hydraulic oil circuit type



Open Circuit

Max. oil pressure of main system

MPa

32

Max. oil pressure of mixing system

MPa

14

Max. mixing rotate speed

r/min

24

Other parameters

Concrete slump

mm

80200

Allowable max dia. of aggregate

mm

Pebble 50crushed stone 40

Dimensionlength×width× height

mm

6600×1930×2190

Weight

Kg

6300

Pulling speed

Km/h

8
