Concrete pump| JH DHBT50| sale for construction | china manufacturer

Concrete pump| JH DHBT50| sale for construction | china manufacturer

Concrete pump| JH DHBT50| sale for construction | china manufacturer
Concrete pump| JH DHBT50| sale for construction | china manufacturerConcrete pump| JH DHBT50| sale for construction | china manufacturerConcrete pump| JH DHBT50| sale for construction | china manufacturerConcrete pump| JH DHBT50| sale for construction | china manufacturer
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelDHBT50
Concrete pumping capactiy50m3/h
concrete pumping height150m
concrete pumping distance400m
System Working Pressure28MPa
Concrete Cylinder200
Max. aggregate dimension40mm
power system85kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand DHBT50 trailer concrete pump For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Trailer Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Item

Unit

Parameter

Pumping system

Max.  theoretical delivery volume

m³/h

50

Max.  theoretical delivery  pressure

MPa

13

Max. delivery frequency

times/min

20

Distribution valve type



S tube valve

Main oil cylinder specification: cylinder dia./role dia. × stroke

mm

125/80×1200

Concrete cylinder specification

mm

200×1200

Hopper capacity

L

600

Output opening diameter

mm

180

Power system

Diesel engine power

KW

85

Rated rotation speed

r/min

2200

Hydraulic system

Type of Hydraulic oil circuit



Open oil circuit

Maximum oil pressure of pumping system

MPa

25

Maximum oil pressure of mixing system



14

Highest mixing speed

r/min

24

Hydraulic oil tank capacity

L

300

Allowable max. dia.of aggregate

mm

Pebble 50,crushed stone 40

Inner dia.of concrete delivery pipe

mm

Φ125

Dimension(length× width× height

mm

5270×1860×2580

Weight

kg

4000

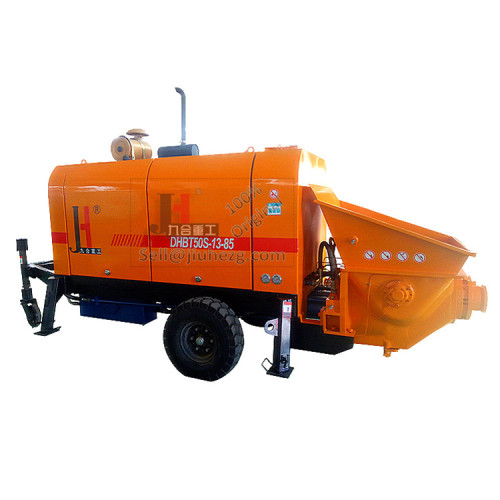

Machine Photo
