Concrete pouring machine | JH DHBT40| sale for construction | china supplier

Concrete pouring machine | JH DHBT40| sale for construction | china supplier

Concrete pouring machine | JH DHBT40| sale for construction | china supplier
Concrete pouring machine | JH DHBT40| sale for construction | china supplierConcrete pouring machine | JH DHBT40| sale for construction | china supplierConcrete pouring machine | JH DHBT40| sale for construction | china supplierConcrete pouring machine | JH DHBT40| sale for construction | china supplier
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelDHBT40
Concrete pumping capactiy40m3/h
concrete pumping height120m
concrete pumping distance350m
System Working Pressure25MPa
Concrete Cylinder160
Max. aggregate dimension30mm
power system85kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand DHBT40 concrete pouring machine For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features
Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Trailer Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Item

Units

Technical data

Whole Machine Performance

theoretical delivery volume

m³/h

40

theoretical delivery pressure

MPa

10

Max. delivery frequency

Times/min

24

theoretical delivery height

m

130

theoretical delivery distance

m

350

Type of distribution valve



S Tube Valve

Specification of delivery cylinder

mm

Φ160×1200

Specification of main oil cylinder

mm

Φ100/Φ70×1200

Oil tank capacity

L

300

Hopper capacity

L

400

Feeding height

mm

1400

Outlet diameters

mm

Φ125

Delivery pipe inner diameter

mm

Φ100

Power system

Diesel Power

Kw

85

Rated rotate speed

r/min

2200

Idling speed

r/min

800

Voltage of battery cell

V

24V

fuel tank capacity

L

150

Hydraulic system

Hydraulic oil circuit type



Open Circuit

Max. oil pressure of main system

MPa

25

Max. oil pressure of mixing system

MPa

14

Max. mixing rotate speed

r/min

24

Other parameters

Concrete slump

mm

80200

Allowable max dia. of aggregate

mm

25

Dimensionlength×width× height

mm

4970×1680×2580

Weight

Kg

3400

Pulling speed

Km/h

8

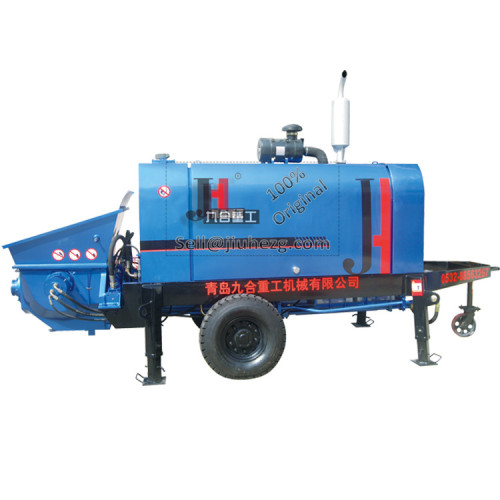

Machine Photo
