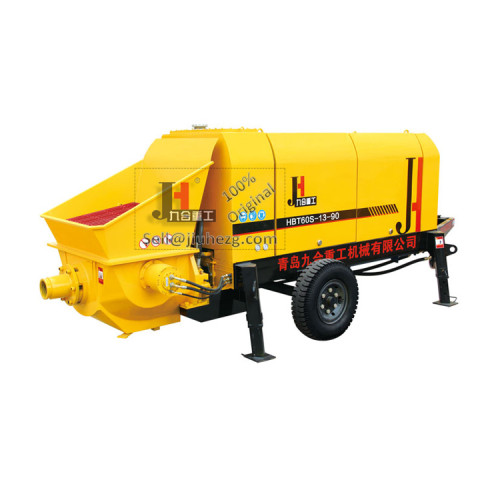

Pump concrete machine | JH HBT60| sale for construction | china manufacturer

Pump concrete machine | JH HBT60| sale for construction | china manufacturer

Pump concrete machine | JH HBT60| sale for construction | china manufacturer
Pump concrete machine | JH HBT60| sale for construction | china manufacturerPump concrete machine | JH HBT60| sale for construction | china manufacturerPump concrete machine | JH HBT60| sale for construction | china manufacturerPump concrete machine | JH HBT60| sale for construction | china manufacturer
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelHBT60
Concrete pumping capactiy60m3/h
concrete pumping height180m
concrete pumping distance500m
System Working Pressure32MPa
Concrete Cylinder200
Max. aggregate dimension40mm
power system90kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand HBT60 pump concrete machine For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Trailer Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Item

Unit

Parameters

Whole machines performance

Max. Theoretic delivery volume

m³/h

60

Max. Theoretic delivery pressure

Mpa

12.5

Max. Delivery frequency

times/min

22(low pressure)13(high pressure)

Max. Theoretic delivery height

m

180

Max. Theoretic delivery distance

m

500

Type of distribution valve



S tube valve

Specification of delivery cylinder

mm

Φ200×1650

Specification of main oil cylinder

mm

Φ125/Φ80×1650

Oil tank capacity

L

500

Hopper capacity

L

600

Feeding height

mm

1400

Outlet opening diameter

mm

Φ180

Inner diameter of delivery pipe

mm

Φ125

Power system

Main Motor power

Kw

90

Rated voltage

 V

380

Rated speed

r/min

1480

Hydraulic system

Hydraulic oil circuit type



Open circuit

Max. Oil pressure of pumping system

MPa

32

Max. Oil pressure of mixing system

MPa

14

Max. Mixing speed

r/min

24

Other parameters

Allowed range of concrete slump

mm

80200

Max. Aggregate diameter

mm

Pebble 50crushed stone40

Dimension(length×width×height)

mm

6170×1800×2100

Overall weight

Kg

5200

Pulling speed

Km/h

8

Machine Photo
