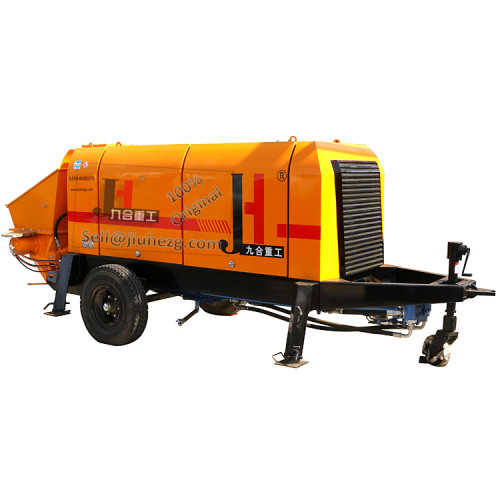

Trailer concrete pump | JH HBT50| sale for construction | china supplier

Trailer concrete pump | JH HBT50| sale for construction | china supplier

Trailer concrete pump | JH HBT50| sale for construction | china supplier
Trailer concrete pump | JH HBT50| sale for construction | china supplierTrailer concrete pump | JH HBT50| sale for construction | china supplierTrailer concrete pump | JH HBT50| sale for construction | china supplierTrailer concrete pump | JH HBT50| sale for construction | china supplier
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelHBT50
Concrete pumping capactiy50m3/h
concrete pumping height150m
concrete pumping distance400m
System Working Pressure28MPa
Concrete Cylinder200
Max. aggregate dimension40mm
power system55kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand HBT50 trailer concrete pump For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Trailer Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

Item

Unit

Parameter

Whole machine performance

Theoretical max. delivery volume

m³/h

50

Theoretical max. delivery pressure

Mpa

12

Max. Delivery frequency

times/min

20

Theoretical max. Delivery distance

Vertical

m

150

Horizontal

m

400

Type of distribution valve



S tube valve

Specification of delivery cylinder

mm

Φ200×1200

Specification of main oil cylinder

mm

Φ125/Φ80×1200

Oil tank capacity

L

300

Hopper capacity

L

600

Feeding height

mm

1400

Outlet opening Diameter

mm

Φ150

Inner dia. of delivery pipe

mm

Φ125

Power system

Main Motor power

Kw

55

Rated voltage

V

380

Rated speed

r/min

1480

Hydraulic system

Hydraulic oil circuit type



Open circuit

Max. Oil pressure of pumping system

MPa

28

Max.oil pressure of mixing system

MPa

14

Max. Mixing speed

r/min

24

Other parameters

Allowed range of concrete slump

mm

80200

Max. Aggregate diameter

mm

Pebble 40crushed stone 30

Dimension

(length×width×height)

mm

5270×2000×1840

Overall weight

Kg

3500

Pulling speed

Km/h

≤8
