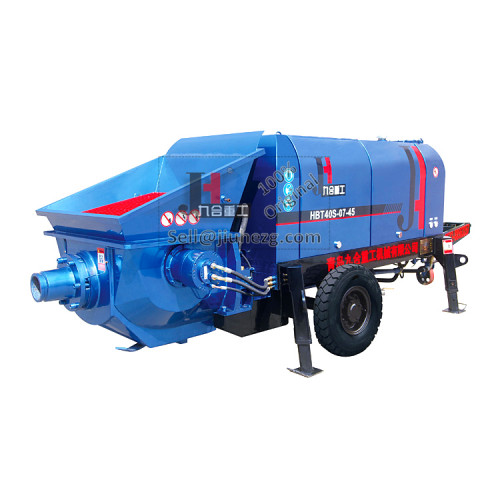

Electric concrete pump |JH HBT40| sale for construction | china factory

Electric concrete pump |JH HBT40| sale for construction | china factory

Electric concrete pump |JH HBT40| sale for construction | china factory
Electric concrete pump |JH HBT40| sale for construction | china factoryElectric concrete pump |JH HBT40| sale for construction | china factoryElectric concrete pump |JH HBT40| sale for construction | china factoryElectric concrete pump |JH HBT40| sale for construction | china factory
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelHBT40
Concrete pumping capactiy40m3/h
concrete pumping height150m
concrete pumping distance400m
System Working Pressure25MPa
Concrete Cylinder160
Max. aggregate dimension30mm
power system45kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand HBT40 electric concrete pump For Sale
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 40-100m³/h and pressure from 13-28Mpa.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE large aggregate Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter

    Item

    Unit

    Parameters

    Whole machines performance

    Max. Theoretic delivery volume

    m³/h

    40

    Max. Theoretic delivery pressure

    Mpa

    07

    Max. Delivery frequency

    times/min

    24

    Max. Theoretic delivery height

    m

    150

    Max. Theoretic delivery distance

    m

    400

    Type of distribution valve



    S tube valve

    Specification of delivery cylinder

    mm

    Φ160×1200

    Specification of main oil cylinder

    mm

    Φ100/Φ70×1200

    Oil tank capacity

    L

    300

    Hopper capacity

    L

    400

    Feeding height

    mm

    1400

    Outlet opening diameter

    mm

    Φ125

    Inner diameter of delivery pipe

    mm

    Φ100

    Power system

    Main Motor power

    Kw

    45

    Rated voltage

     V

    380

    Rated speed

    r/min

    1480

    Hydraulic system

    Hydraulic oil circuit type



    Open circuit

    Max. Oil pressure of pumping system

    MPa

    25

    Max. Oil pressure of mixing system

    MPa

    14

    Max. Mixing speed

    r/min

    30

    Other parameters

    Allowed range of concrete slump

    mm

    80200

    Max. Aggregate diameter

    mm

    30

    Dimension(length×width×height)

    mm

    4970×1680×2580

    Overall weight

    Kg

    3200

    Pulling speed

    Km/h

    8

Machine Photo
