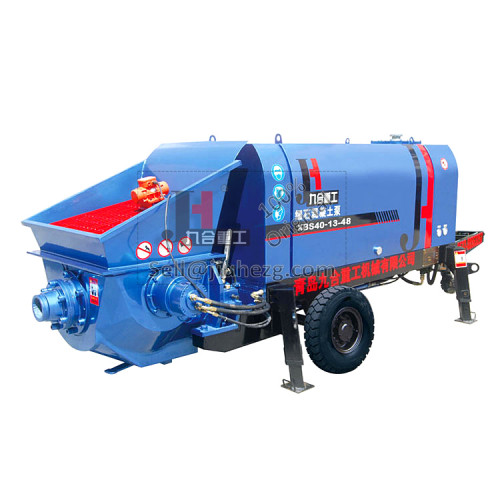

Mortar concrete pump |JH XBS40| sale for construction | china manufacturer

Mortar concrete pump |JH XBS40| sale for construction | china manufacturer

Mortar concrete pump |JH XBS40| sale for construction | china manufacturer
Mortar concrete pump |JH XBS40| sale for construction | china manufacturerMortar concrete pump |JH XBS40| sale for construction | china manufacturerMortar concrete pump |JH XBS40| sale for construction | china manufacturerMortar concrete pump |JH XBS40| sale for construction | china manufacturer
CategoriesTrailer Concrete Pump
BrandJH, Heavy Industry Machinery
ModelXBS40
Concrete pumping capactiy40m3/h
concrete pumping height120m
concrete pumping distance300m
System Working Pressure25MPa
Concrete Cylinder140
Max. aggregate dimension30mm
power system48kw
Hydraulic oil circuit typeOpen circuit
Lubricationauto lubrication
FOB portany port of China
Terms of PaymentL/C, T/T
Update Time2022/9/30
Detail Information
China Factory Direct Supply JIUHE Brand XBS40 Mortar concrete pump For Sale
XBS series products are a kind of mortar conveying equipment specially developed according to the characteristics of floor heating projects. They are extensively applied in the large area and highly efficient construction of fine stone concrete or mortar stuffing in floor heating projects.XBS series products are also widely used for the conveying of fine stone concrete, fir-resistant and heat-insulating materials in various construction projects; the delivery of afforesting soil in eco-environmental construction; the pressure grouting of various basic piles.

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.


Video
JIUHE Fine Stone Mortar Concrete Pump for Sale
JIUHE is professional manufacturer in China for trailer concrete pump vary from 40m3/h to 100m3/h , we are factory directly supply, both quality and service can be ensured.

JIUHE Main Products:
Trailer concrete pump,
concrete line pump,
concrete pump truck,
concrete placing boom,
wet shotcrete machine,
ladder lift truck,
Aerial lift truck and so on.
Parameter



    Items

    Units

    Parameters

    Whole machines performance

    Theoretical max. discharging volume

    m³/h

    40

    Theoretical max. delivery pressure

    Mpa

    13

    Max. delivery frequency

    times/min

    30

    The type of distribution valve



    S valve

    Specification of delivery cylinder

    mm

    Φ140×800

    Specification of main oil cylinder

    mm

    Φ80/Φ50×800

    Outlet opening diameter

    mm

    Φ125

    Hopper capacity

    L

    300

    Power system

    Rated voltage

    V

    380

    Main motor power

    Kw

    45

    Rated speed

    r/min

    1470

    Assistant motor power

    Kw

    3

    Rated speed

    r/min

    1430

    Hydraulic system

    Hydraulic oil circuit type



    Open circuit

    Max. oil pressure of pumping system

    MPa

    25

    Max. oil pressure of mixing system

    MPa

    9

    Max. mixing speed

    r/min

    24

    Oil tank capacity

    L

    200

    Other parameters

    Max. diameter of aggregates

    mm

    30

    Inner dia. of delivery pipe

    mm

    Φ80

    Dimension

    (length×width×height)

    mm

    4300×1500×1500

    Overall weight

    Kg

    2100

    Pulling speed

    Km/h

    ≤8

Machine Photo
